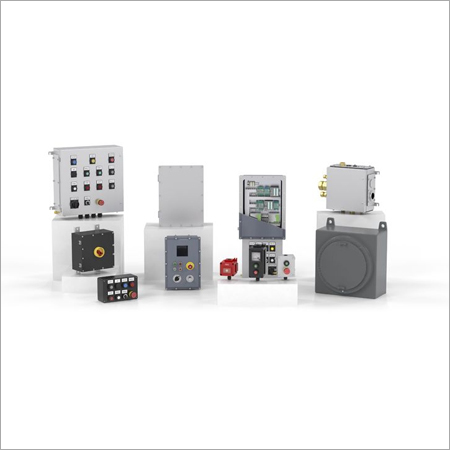

Electrical Explosion Protection Equipment

Electrical Explosion Protection Equipment
Electrical Explosion Protection Equipment
Product Code : PE-23
Brand Name : PEPPERL+FUCHS (INDIA) PVT. LTD.
Product Description

LOCAL CONTROL IN GRP

SINGLE FUNCTION LOCAL CONTROL

LCP100 RANGE FEATURES :

  • Zone 1, 2, 21, 22
  • II 2 GD
  • Certification: Ex edm IIC T6 Gb,
  • Ex tb IIIC T85 oC Db
  • Ambient temperature range -20oC to +55oC
  • -40oC when used with a plug and gland rated to -40 oC
  • IP66 to EN 60529:1992
  • Carbon loaded anti-static glass reinforced polyester
  • Enclosure size: 110 mm x 110 mm x 99 mm
  • 2 x External mounting lugs

CONTROL PANELS

SHEET STEEL CONTROL PANELS

XLCP RANGE FEATURES :

  • Zone 1, 2, 21, 22
  • II 2 GD
  • Certification: Ex edm IIC T6/5 Gb,
  • Ex tb IIIC T130/160 oC Db
  • Ambient temperature range -50 oC to +50 oC
  • IP66 to EN 60529:1992
  • Electropolished 1.5 mm (FXLCP3) or 2 mm (FXLCP5, 6 & 9)
  • 316L Stainless Steel or powder coated Mild Steel box
  • 0 - 4 Electropolished 3 mm 316L Stainless Steel or powder coated Mild Steel gland plates
  • Available sizes :
    • XLCP3: 306 mm x 306 mm x 150/200 mm,
    • XLCP5: 458 mm x 382 mm x 150/200 mm,
    • XLCP6: 480 mm x 480 mm x 150/200 mm,
    • XLCP9: 762 mm x 580 mm x 150/200 mm
  • 4 External mounting feet
  • Padlockable hasp

CONTROl PANELS

FLAMEPROOF CONTROL PANELS

ASMCP RANGE FEATURES :

  • Zone 1, 2, 21, 22
  • II 2 GD
  • Certification: Ex d IIB T5 Gb,
  • Ex tb IIIC T87 oC Db
  • Ambient temperature range (with window -20 oC)
  • -40 oC to +55 oC
  • IP66 to EN 60529:1992
  • Available in cast iron, cast aluminium and cast stainless steel
  • Available sizes:
    • ASMCP150/CI/AL/SS: 335 mm x 310 mm x 200 mm,
    • ASMCP170/CI/AL/SS: 560 mm x 560 mm x 245 mm
  • 4 external mounting holes

GUB - Ex d IIC Aluminum and Stainless Steel :

  • Certiļ¬ed Ex d and Ex tb as well as for installation of intrinsically safe circuits (Gas group IIC, Zones 1, 2, 21, 22)
  • Ambient temperature range: -50 oC +60oC, ingress protection IP66 (IP67 on request)
  • 12 sizes, material: copper-free aluminum alloy, epoxy painted RAL7005 (gray) or stainless steel AISI 316L, shot-peened
  • Customizable terminals, cable entries, and glands as per specification
  • Various international certification including ATEX and IECEx

MOTOR STARTERS

DIRECT-ON-LINE STARTERS

DOL RANGE FEATURES :

  • Zone 1, 2, 21, 22
  • II 2 GD
  • Certification: Ex d IIB T5/6 Gb,
  • Ex tb IIIC T87/85 oC Db
  • Ambient temperature range -40 oC to +55 oC
  • IP65/66 to EN 60529:1992
  • Black powder coated cast iron
  • Supplied with 2 steel mounting straps
  • Direct online starters from 5.5 kW to 30 kW
  • Adjustable overload relay
  • 240 V or 415 V control circuit
  • Overload relay suitable for Ex e Motors

STAR-DELTA STARTERS

SDS RANGE FEATURES :

  • Zone 1, 2, 21, 22
  • II 2 GD
  • Certification: Ex d IIB T5/6 Gb,
  • Ex tb IIIC T87/85 oC Db
  • Ambient temperature range -40 oC to +55 oC
  • IP66 to EN 60529:1992
  • Black powder coated cast iron
  • Supplied with 2 steel mounting straps
  • Star Delta Starter/Isolator from 11 kW to 30 kW
  • 240 V or 415 V control circuit
  • Overload relay suitable for Ex e Motors
